Swimming pool chemical dosing system







Overview

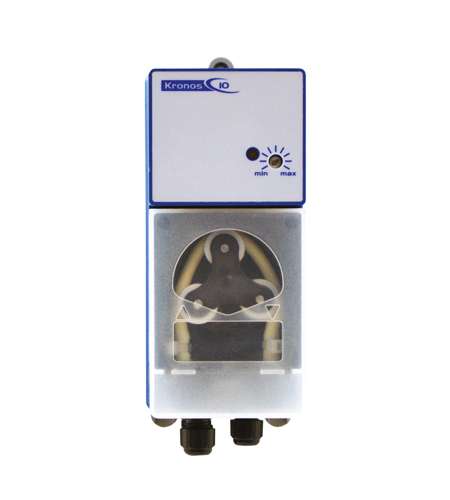

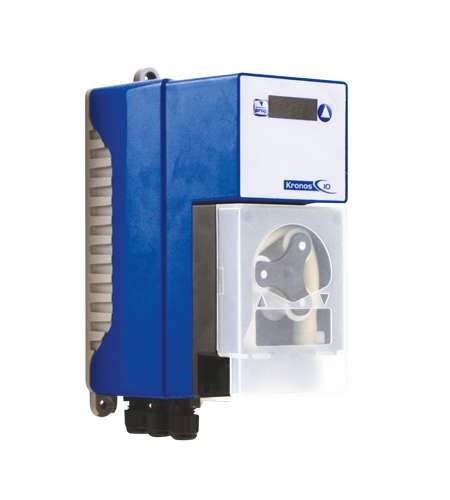

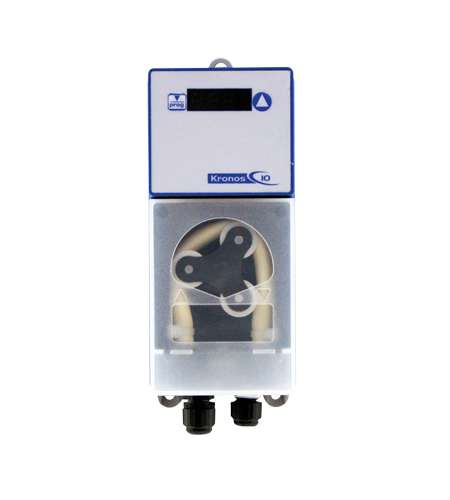

PoolKronos 10 is a peristaltic constant dosing system using built in controllers for pH/ORP measurement designed specifically for Swimming Pool applications and offers flexibility of installation, user-friendliness in programming and a constant chemical dosing by pH or ORP analysis.
Features
for pH (6.6 – 8.0)
for ORP (600 – 1000 mV)
Flow rate 1.5 l/h ; Pressure 1.5 bar
for ORP (600 – 1000 mV)
Flow rate 1.5 l/h ; Pressure 1.5 bar
Pool Size Indoor 1 – 130 m³ ; Outdoor 1 – 110 m³
- Main board
- Display LCD 7 segment
- Power supply with galvanised electrical insulation 100 – 240 Vac 50/60Hz
- IP65 enclosure
- Dimensions 204 x 76 x 124 mm
- Material PP with fiber glass
