Overview

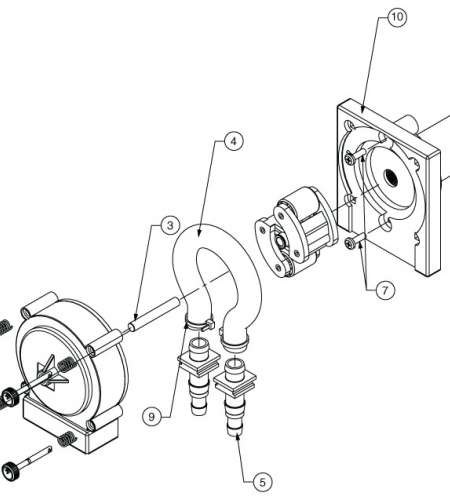

INDIVIDUAL PARTS
Code No. | Description
1203353 | No. 5, Tube insert for 0.250” bore tube
E281220 | No. 5, Tube insert for 0.375” bore tube, Tube insert, barb, 3/8 x 1/2 connection, 20 oz pumps
068668 | No. 6, Roller assembly for Viton tube
040999 | No. 7, Screw for pump mounting plate
E451042 | No. 8, Motor/gearbox assembly
041319 | Cable ties, large, No. 9, Large tie wraps, all dispensers
E270024 | No. 10, Pump mounting plate
051606 | No. 11, Blank pump plate (2 each)
093288 | Lubricant, Dow Corning, 6 grams
E248009 | Cartridge without tubing
COMPLETE PUMP CARTRIDGE KITS AND PUMP MOTOR/GEARBOX KITS
Code No. | Description
E236064 | No. 1-6, 9, Pump cartridge w/silicone 0.375” ID tubing, 3/8” & 1/2”B fittings, no motor
E236042 | No. 1-6, 9, Pump cartridge w/EPDM2 0.250” ID tubing, 3/8”B – 3/8”B, no motor
093485 | No. 1-10, Pump head/motor/gearbox, 7100 RPM, w/silicone tube 3/8” and 1/2”B fittings, and connection screws
099228 | No. 1-10, Pump head/motor/gearbox, 7100 RPM, w/0.375” ID EPDM tube, and connection screws
1201032 | No. 1-10, Pump head/motor/gearbox, 7100 RPM, w/0.25 ID EPDM tube, and connection screws
093967 | No. 1-10, Pump cartridge w/EPDM tubing, 0.375 ID, 3/8” – 1/2” B fittings
095684 | No. 1-10, Pump cartridge w/Bi-wall tubing, 0.375 ID, 3/8” – 1/2” B fittings
1207655 | WIRE HARNESS, fFOR 600 SERIES,SINGLE PUMP
TUBING OPTIONS
Code No. | Description
E223081 | EPDM2, 1/4” bore, 3/8 step barb transport tube fitting, ID-0.25 in., ID-6.35 mm, OD-0.52 in., OD-13.2 mm, black color, E (lubrication)
1207591 | Biwall, 3/8” bore, 3/8 – 1/2 step barb transport tube fitting, ID-0.375 in., ID-9.53 mm, OD-0.642 in., OD-16.3 mm, beige color, E (lubrication)
096171 | Beta tube, 3/8” bore, 3/8 – 1/2 step barb transport tube fitting, ID-0.375 in., ID-9.53 mm, OD-0.63 in., OD-16.0 mm, beige color, E (lubrication)
E223083 | EPDM2, 3/8” bore, 3/8 – 1/2 step barb transport tube fitting, ID-0.375 in., ID-9.53 mm, OD-0.63 in., OD-16.0 mm, black color, E (lubrication)
096174 | Silicone, 3/8” bore, 3/8 – 1/2 step barb transport tube fitting, ID-0.375 in., ID-9.53 mm, OD-0.642 in., OD-16.3 mm, milk color, F (lubrication)
099270 | Viton, 3/8” bore, 3/8 – 1/2 step barb transport tube fitting, ID-0.375 in., ID-9.53 mm, OD-0.622 in., OD-15.8 mm, black color, B (lubrication)
1202306 | EPDM (standard) 1/3”B – 3/8”B, 6/kit, ID-0.25 in., ID-6.35 mm, OD-0.52 in., OD-13.2 mm, black color, E (lubrication)
1202307 | EPDM (standard) 1/3”B – 3/8”B, 4/kit, ID-0.25 in., ID-6.35 mm, OD-0.52 in., OD-13.2 mm, black color, E (lubrication)
E223089 | Viton tube with roller assembly,ID-0.375 in., ID-9.53 mm, OD-0.622 in., OD-15.8 mm, blackcolor, F (lubrication)
1208090 | Solvent resistant tube 3/8” – 1/2” step barb, ID-0.375 in., ID-9.53 mm, OD-0.622 in., OD-15.8 mm, clear/pink color, F (lubrication)
