8 oz. Pumps

Overview

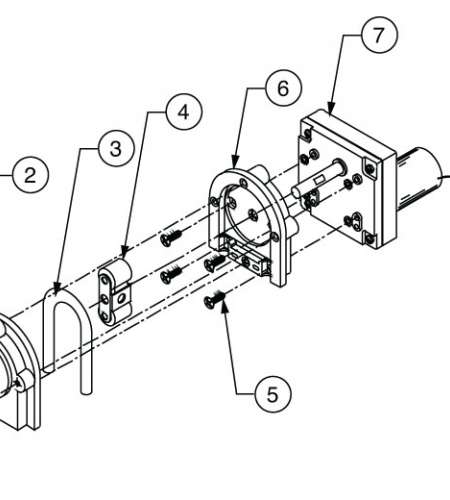

INDIVIDUAL PARTS
Code No. | Description
040992 | No. 1, Screw, phillips pan head, 6-32 x 3/4, requires 4 per pump, outside pump mounting
E269022 | No.2, Pump head front, smoke, used w/rinse tube & 099234
E248003 | No. 4, Roller assembly, yellow, 0.710 OD
E248005 | No. 4, Roller assembly, green, 0.780 OD
E248004 | No. 4, Roller assembly, white, 0.770 OD for Viton
040985 | No. 5, Screw, flathead, 8-32 x 3/8, requires 2 per pump, inside pump mounting
040986 | No. 5, Screw, phillips flathead, 8-21 x 3/4, requires 2 per pump, inside pump mounting
E269024 | No. 6, Pump head, rear, smoke
041189 | Hex spacer, 3/16, 6/32, nickel plated
018051 | No. 7, Motor, 115 VAC, 60 Hz, 100 RPM, used w/P4000, L4000E,
018053 | No. 7, Motor, 230 VAC, 60 Hz, 100 RPM, used w/P4000, L4000E,
E451013 | No. 7, Motor, 24 VDC, 100 RPM, used w/H3000E, H8000 detergent
035529 | No. 7, Motor, 24 VDC, 45 RPM, used w/H8000, S2140 sanitizer
E451011 | No. 7, Motor, 24 VDC, 17 RPM, used w/H3000E rinse

COMPLETE PUMP MOTOR KITS
Code No. | Description
E236023 | No. 1-7, 24 VDC, 100 RPM motor, smoke pump heads, silicone tubing
E236018 | No. 1-7, 24 VDC, 17 RPM motor, silicone sanitizer tube, smoke pump heads
E236010 | No. 1-7, 115 VAC, 106 RPM motor, smoke pump heads, silicone tubing
035723 | No. 1-7, 230 VAC, 106 RPM motor, smoke pump heads, silicone tubing
1203654 | No. 1-7, 230 VAC, 106 RPM motor, EPDM 0.188 tubing
035732 | No. 1-7, 24 VDC, 17 RPM motor, smoke pump heads, Beta tube, rinse
1208573 | No. 1-7, 24 VDC, 100 RPM motor, detergent, Beta tubing
039549 | PUMP CARTRIDGE NS1000 RINSE
058208 | No. 1-7, Silicone rinse tube, 1/8”T
058777 | No. 1-7, Food grade sanitizer tube, 1/4”T
094204 | No. 1-7, 0.25” ID high-flow flex detergent, 1/4” B
1203331 | No. 1-7, 0.25” ID high-flow flex 3/8”B
096992 | No. 1-7, Pump cartridge, detergent, flex tube, 10mm fitting
091940 | No. 1-7, Pump cartridge, sanitizer, flex, 1/4”T x 1/4”T
092995 | No. 1-7, Pump cartridge, rinse, flex, 1/8”T x 1/8”T

TUBING OPTIONS
Code No. | Description
041849 | Detergent capacity tubes, molded EPDM, green roller, ID-0.188 in.
E223120 | Detergent capacity tubes, silicone, 9” long, high volume, green roller, ID-0.25 in., ID-6.35 mm, OD-0.437 in., OD-11.1 mm, milk color, B (lubrication)
022028 | Detergent capacity tubes, Beta tube, 9” long, green roller, ID-0.188 in., ID-3.18 mm, OD-0.375 in., OD-9.53 mm, biege color, A (lubrication)
E223043 | Detergent capacity tubes, silicone, 9” long, green roller, ID-0.188 in., ID-4.77 mm, OD-0.385 in., OD-9.78 mm, milk color, B (lubrication)
E223055 | Detergent capacity tubes, Viton, 9” long, white roller, ID-0.19 in., ID-4.83 mm, OD-0.39 in., OD-9.91 mm, black color, B (lubrication)
E223046 | Detergent capacity tubes, EPDM, 9” long, green roller, ID-0.188 in., ID-4.77 mm, OD-0.385 in., OD-9.78 mm, black color, A (lubrication)
099234 | Detergent capacity tubes, EPDM, 9” long, thick wall, yellow roller, ID-0.195 in., ID-4.9 mm, OD-4.45 in., OD-11.3 mm, black color, E (lubrication)
E223087 | Rinse capacity tubes, Beta tube, 9” long, yellow roller, ID-0.125 in., ID-3.18 mm, OD-0.375 in., OD-9.53 mm, biege color, A (lubrication)
E223049 | Rinse capacity tubes, silicone, 9” long, yellow roller, ID-0.125 in., ID-3.18 mm, OD-0.375 in., OD-9.53 mm, milk color, B (lubrication)
035926 | Rinse capacity tubes, EPDM, 9” long, Nordel, yellow roller, ID-0.125 in., ID-3.18 mm, OD-0.375 in., OD-9.53 mm, black color, A (lubrication)
026883 | Sanitizer capacity tubes, silicone, 9” long, yellow roller, ID-0.17 in., ID-4.32 mm, OD-0.413 in., OD-10.6 mm, milk color, B (lubrication)
093288 | Lubricant, Dow Corning, 6 grams
