For dry and solid dispensing into sinks.

Product Image Product Image Product Image
Product ImageProduct Image

Overview

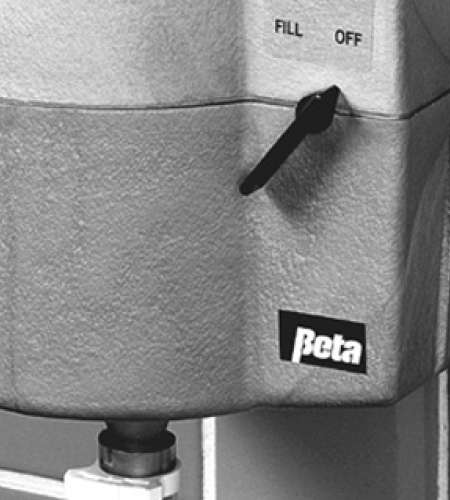

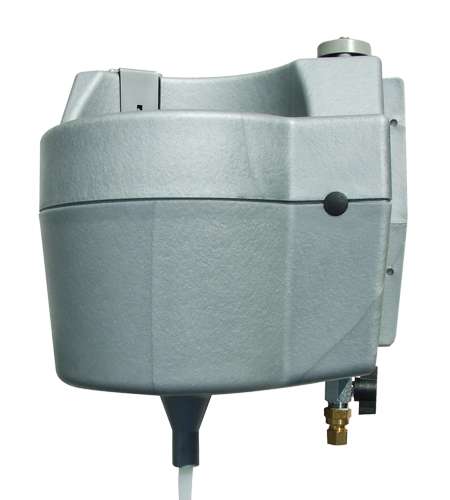

The Encapsulator is a simple, reliable method of dispensing dry and solid products into sinks. Unreliable timers and hand pumps are replaced with a simple 1/4 turn valve that fills the sink and doses chemical concurrently. Solution strength is set with an internal adjustment.

When the fill valve is turned on, water is sprayed up into the capsule for product washout. Gravity discharges the concentrated solution down the primary delivery tube. Bypass water in the secondary delivery tube dilutes the concentrate in the mixing zone. The final solution flows into the sink ready for use.

Product concentrations can easily be adjusted by increasing or decreasing the amount of bypass water. For solid product applications with chemical bottles that have screens on the end, we recommend using and Encapsulator Plus with the 84° nozzle. To handle different product formulations, nozzles are available with different spray patterns and flow rates.
