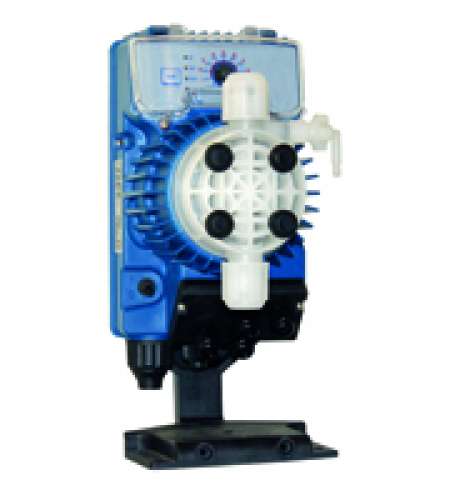

Solenoid dosing pumps

Overview
Analogue dosing pump with a constant flow rate that can be manually adjusted or a proportional flow rate according to an external analogue (4÷20 mA) or digital pulse signal (e.g. from water meter). The control dial has percentage and "n" value in multiplication modes. The 6 position adjustable switch is in 3 division mode (1, 4, 10 = n)- 1 in multiplication mode (n=1)
- 1 for proportional 4÷20 mA signal
- 1 for constant functionality
The "pacing" function is adjustable by dip switch.
Features
- Flow rates: from 0.4 to 110 l/h
- Max back pressure: up to 20 bar
- Power supply 100÷240Vac 50/60 Hz
- Stroke rate: from 120 to 300 strokes/minute
- Pump head: PVDF
- Diaphragm: PTFE
- External Enclosure: PP reinforced with fiber glass protection degree IP65
- Manually priming valve
- Installation kit: Included
